Description:
Release time:2026-08-21
Views:22

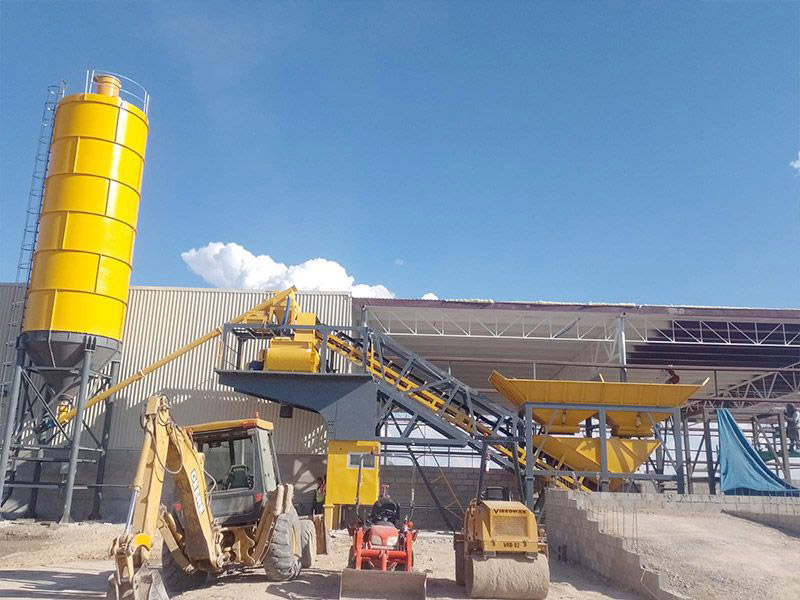

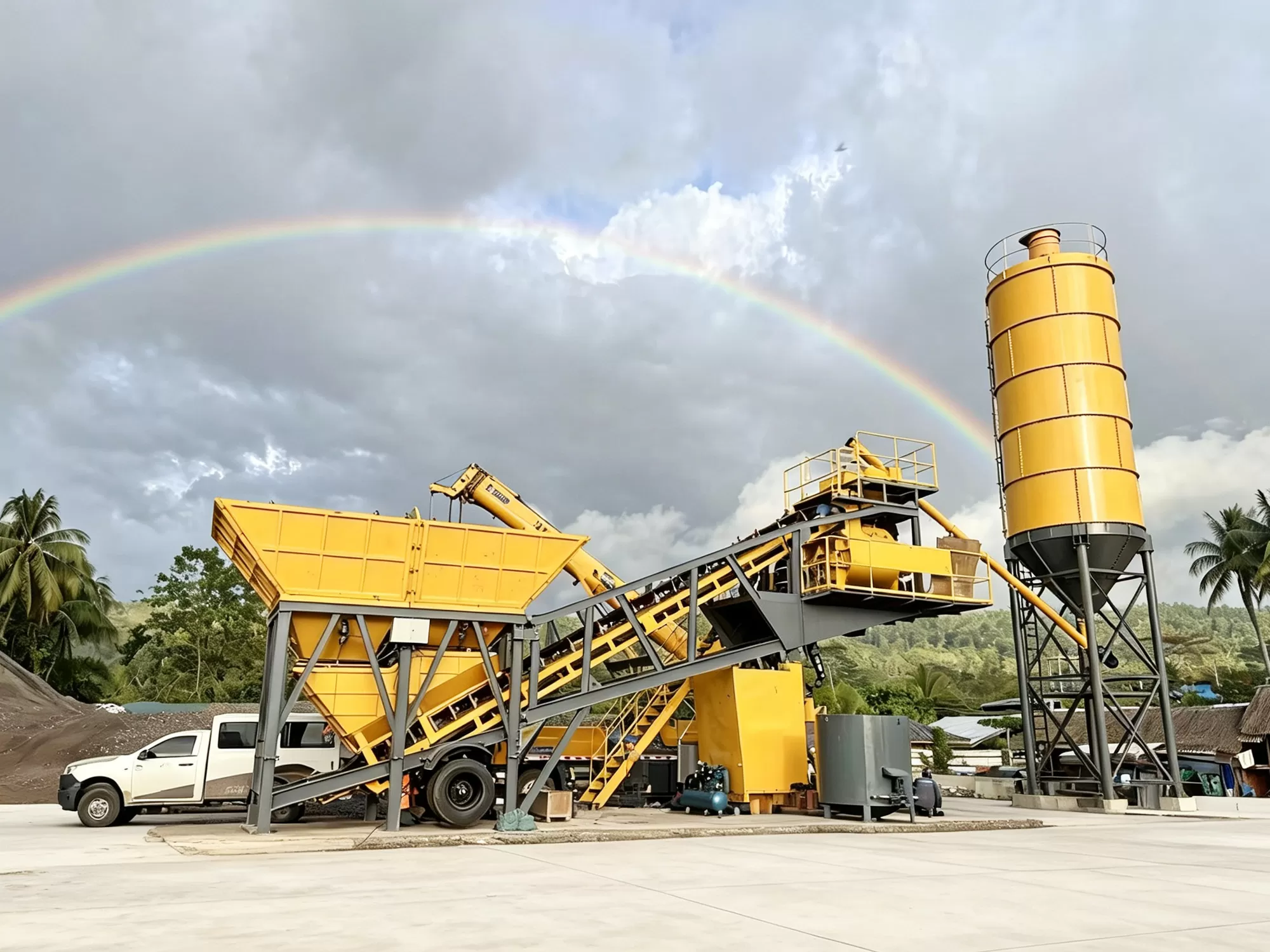

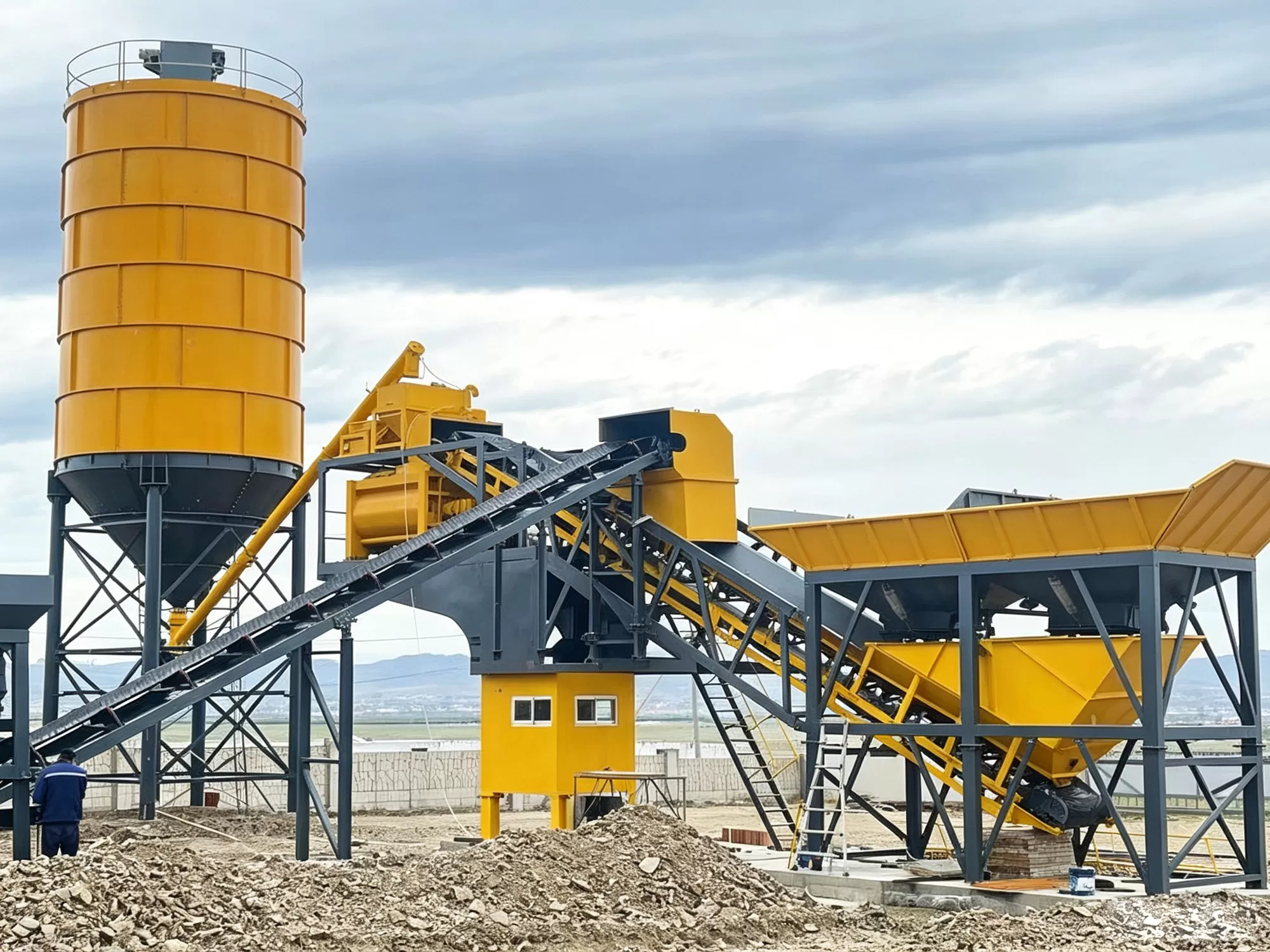

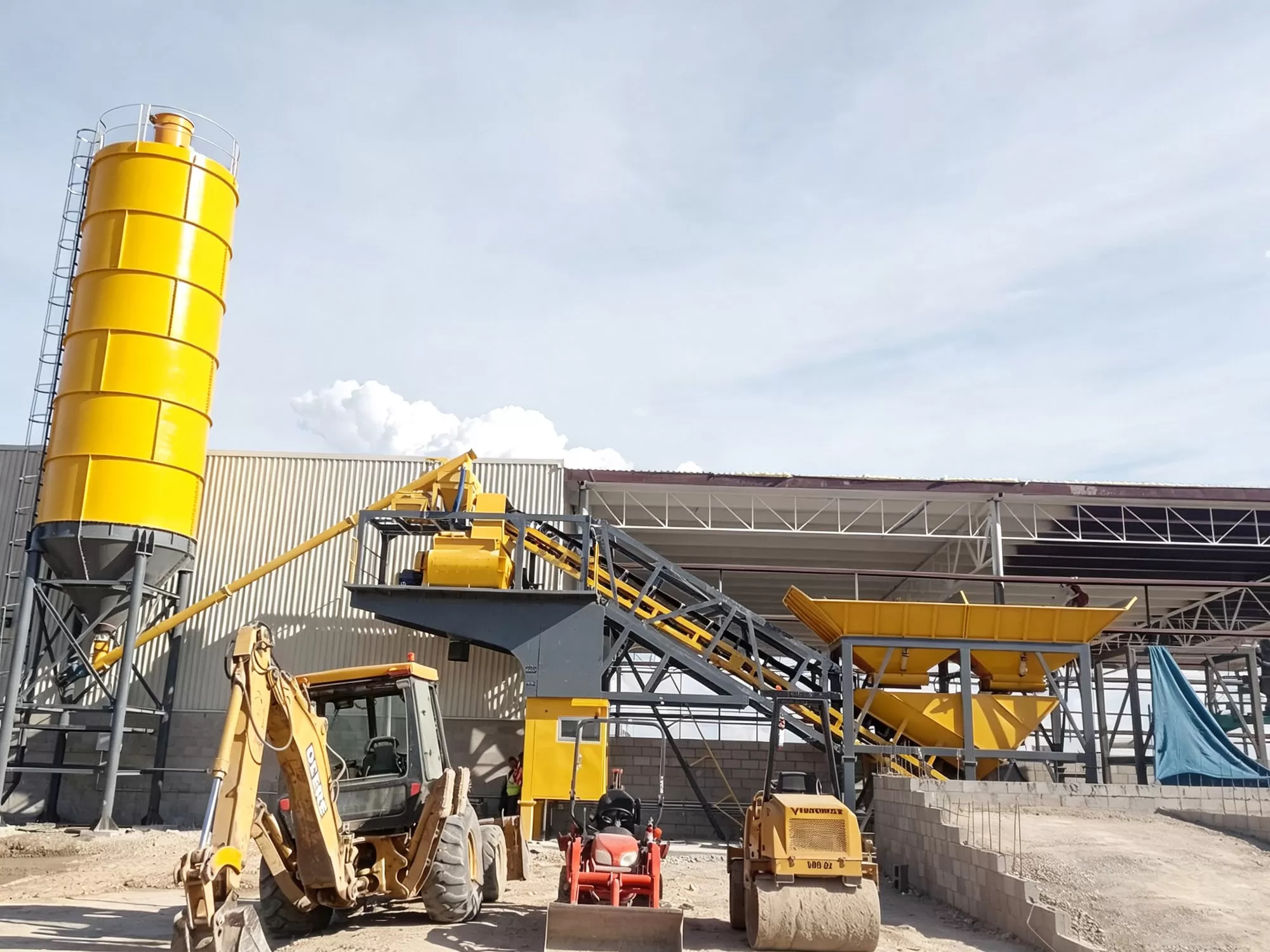

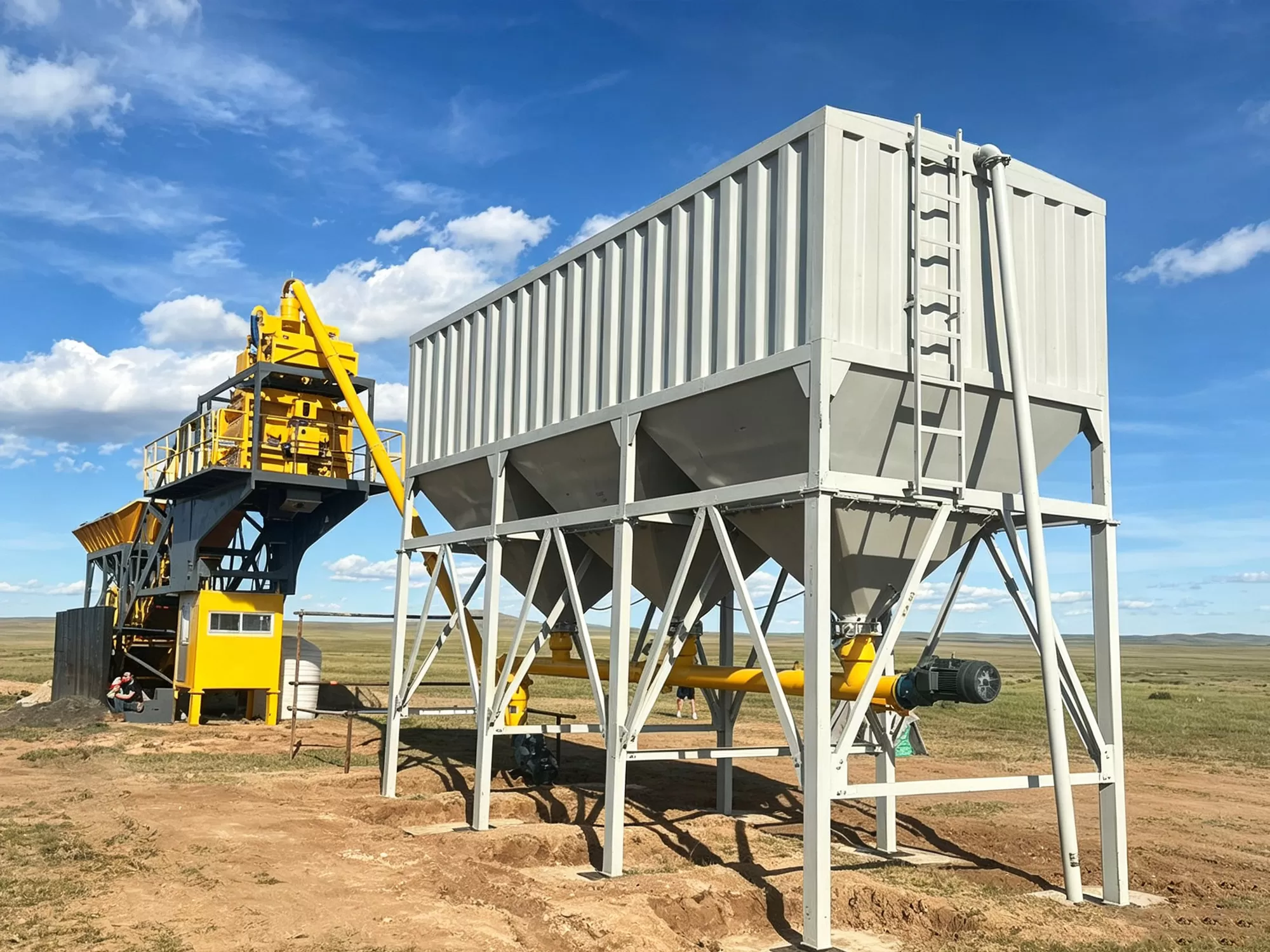

25-90m³/h Mobile concrete batching plants are designed for applications requiring small-batch concrete production and frequent site relocation. They reduce investment while maintaining efficiency and stability, enabling the YHZS batching plant to truly "move with the work, change with the work."
Features of Mobile Concrete Batching Plants:
Modular Design, No Foundation Required: The main body can be assembled in one day and put into production within five days.
Sturdy Structure, Compact Layout: Designed based on mechanical principles, the robust frame ensures no deformation for up to 30 years.

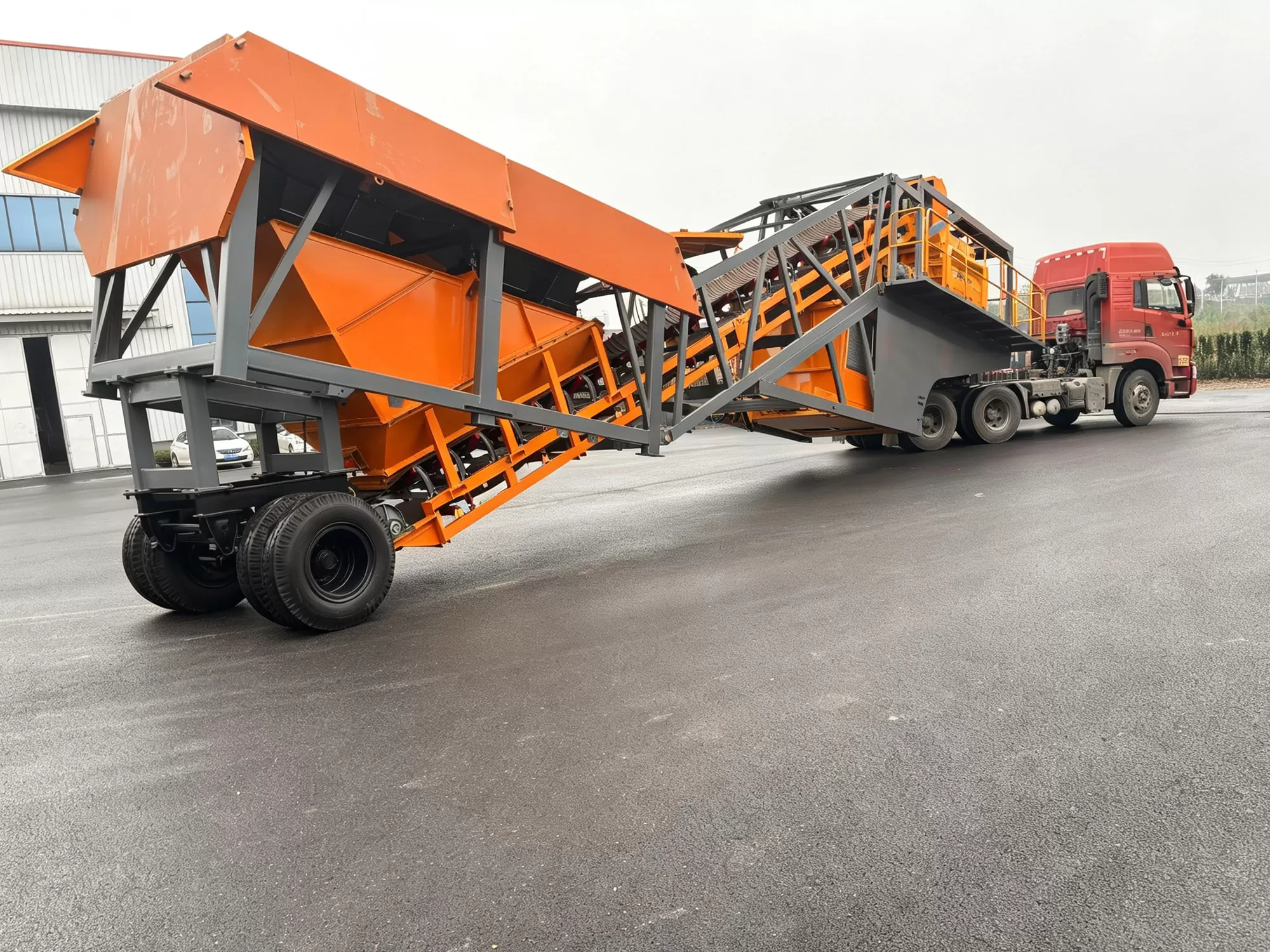

Truly "Mobile," Utilizing an Integrated Trailer Structure: The integrated design allows the entire unit to be towed.
High Efficiency and High-End Performance: Employing high-chromium alloy wear-resistant components, it guarantees continuous production of up to 50,000 batches, exceeding ASTM standards by 10%.
This equipment can adapt to harsh environments and complex working conditions, including extreme cold, extreme heat, and sandstorms. Customization is welcome.

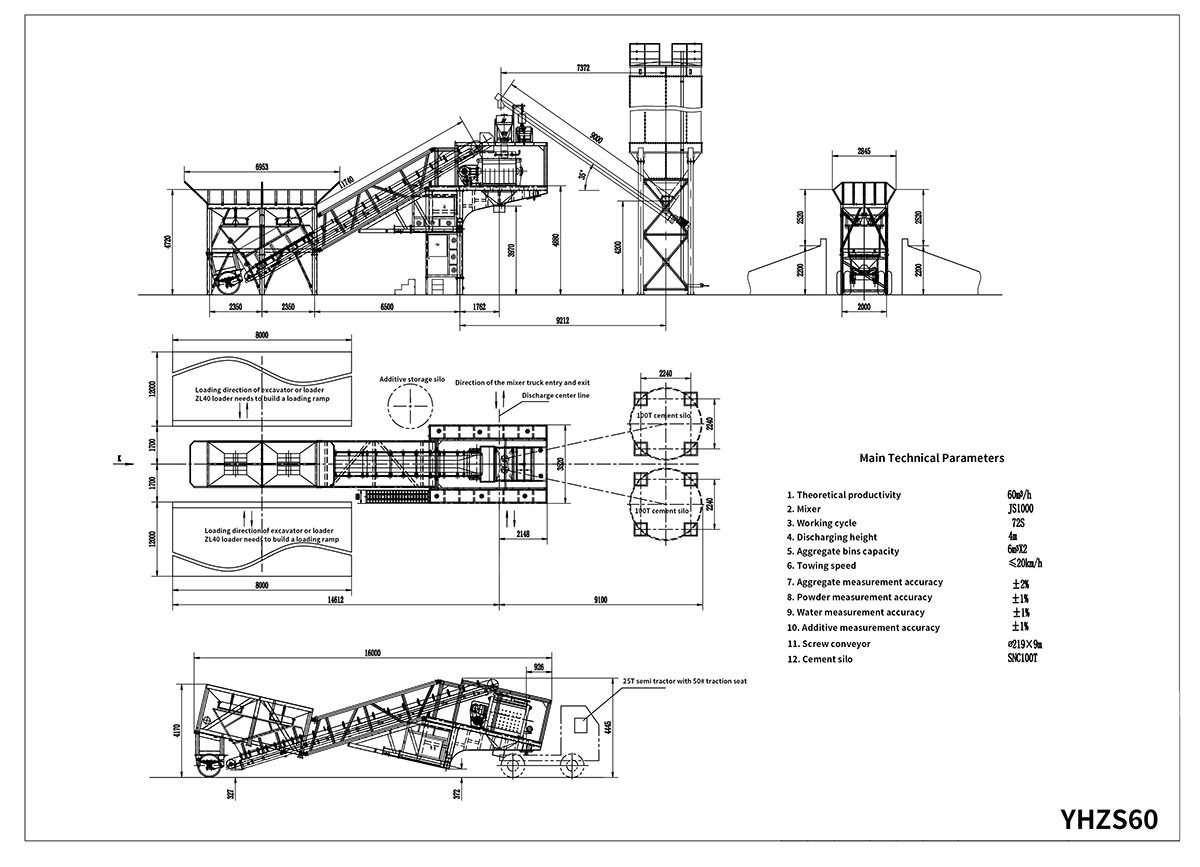

| Name of parameters | YHZS25 | YHZS40 | YHZS60 | YHZS90 | YHZS120 |
| Theoretical productivity | 25m³/h | 40m³/h | 60m³/h | 90m³/h | 120m³/h |
| Model of mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Mixing motor power | 18.5kw | 30kw | 2x18.5kw | 2x30kw | 2x37kw |
| Cycle period | 72s | 72s | 72s | 72s | 72s |
| Volume of mixer | 500l | 750l | 1000l | 1500l | 2000l |
| Aggregate max size | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm |
| Suppose volume of cement silo -OPTIONAL | 1x50t | 1x75t | 1x100t | 1x100t | 2x100t |
| Capacity of batching machine | 800l | 1200l | 1600l | 2400l | 3200l |
| Volume of batching machine | 2x4 m³ | 2x4 m³ | 2x6 m³ | 2x6 m³ | 4x8 m³ |
| Quantity of aggregate | 2 | 2 | 2 | 2 | 4 |
| Conveyor ability of aggregate belt | 100t/h | 150t/h | 200t/h | 200t/h | 250t/h |
| Max. Conveyor ability of screw conveyor | 40t/h | 40t/h | 80t/h | 80t/h | 80t/h |
| Unloading height | 3.8m | 3.8m | 3.8m | 4.0m | 4.0m |
| Total power of the plant | 55kw | 60kw | 79kw | 107kw | 145kw |
